Spotlight Exhibits

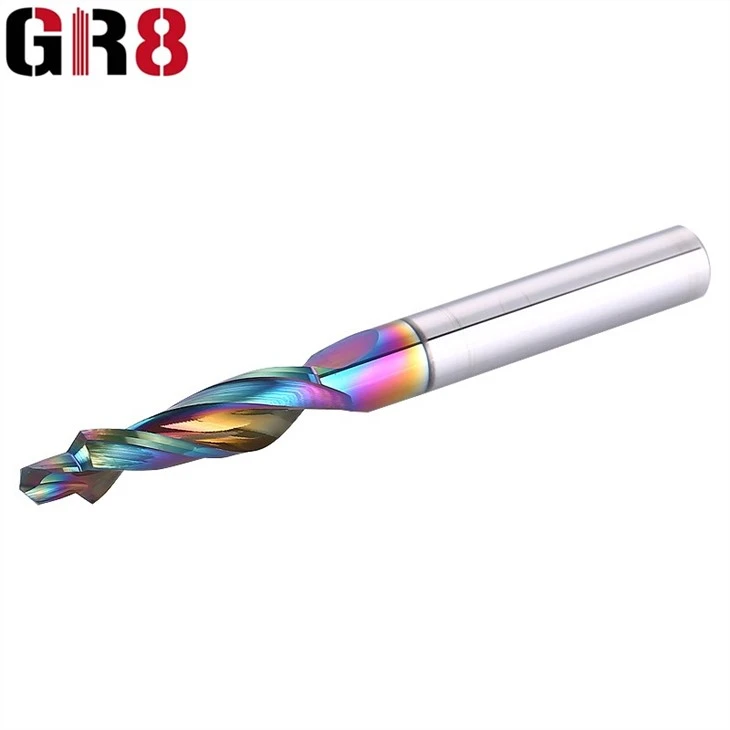

This particular 2 Flutes DLC Milling Drills is an outstanding machinery tool that is highly sought after in the field of modern metal processing. With its unique design and excellent characteristics, it is known for its exceptional performance and efficiency in metal processing applications. Its double groove design and various coating options make it an ideal choice for removing materials, burrs and keeping a smooth surface.
This high-performance tool is especially designed for metal processing. It can provide mirror finish for aluminum and similar materials, making it an essential tool in the industry. The milling cutter is also highly suitable for machining brass, copper, gold, magnesium, alloys, plastics, acrylic acid, PVC and other non-ferrous metals to meet various industrial demands.
Besides its exceptional performance, the 2 Flutes DLC Milling Drills also comes with various coating choices to enhance its wear-resistance and durability. It is an indispensable tool for any modern metal processing operation, thanks to its versatility and reliability. Its popularity in the industry continues to soar due to its effectiveness in producing high-quality, precision parts.
Features
The 2 Flutes DLC Milling Drills is specifically designed for metal processing applications. Constructed from high-quality carbon alloy material, this tool possesses exceptional hardness and a compact structure. With its remarkable cutting speed, it effectively removes materials from the workpiece, resulting in a sleek and smooth surface. This drill ensures efficient metal machining while preserving the workpiece's optimal smoothness.
The milling cutter offers a range of coating options, such as titanium nitride (TiN), titanium carbonitride (TiCN), titanium aluminum nitride (TiAlN or AlTiN), and diamond veneer. These coatings enhance the tool's wear resistance, lubricity, and thermal stability, enabling it to perform effectively across different materials and processing conditions. With these coating options, users can expect improved tool longevity and performance.
The selection of different specifications is available, including standard and metric shank and cutting diameter. This range of options caters to various processing requirements, particularly for high-yield light processing tasks.
4. The milling drill's efficient metal removal is attributed to its innovative double-groove design. This design not only enhances the machining efficiency by effectively extracting materials from the workpiece but also accelerates the chip removal process. By facilitating the swift evacuation of chips, the drill prevents any downtime caused by chip blockage.
Factory
Product Description
|
SPECIFICATION |
d1 |
L1 |
D |
L |
|
D4*5*D8*70L |
4mm |
5mm |
8mm |
70mm |
|
D4.2*5*D8*70L |
4.2mm |
5mm |
8mm |
70mm |
|
D4.5*5*D8*70L |
4.5mm |
5mm |
8mm |
70mm |
|
D4*6*D8*80L |
4mm |
6mm |
8mm |
80mm |
|
D4.1*6*D8*80L |
4.1mm |
6mm |
8mm |
80mm |
|
D4.2*8*D8*80L |
4.2mm |
8mm |
8mm |
80mm |
|
D4.5*8*D8*80L |
4.5mm |
8mm |
8mm |
80mm |
|
D4.5*8*D10*100L |
4.5mm |
8mm |
8mm |
100mm |
|
D4.8*8*D10*100L |
4.8mm |
8mm |
8mm |
100mm |
|
Tolerances |
||
|
Flute Diameter |
Flute Diameter Tolerance |
Shank Diameter Tolerance |
|
Φ1.0-Φ2.9 |
0～-0.02 |
H6 |
|
Φ3-Φ6 |
-0.01～-0.03 |
|
|
Φ6-Φ10 |
-0.01～-0.035 |
|
|
Φ10.0-Φ18.0 |
-0.01～-0.04 |
|
|
Φ18.0-Φ20.0 |
-0.015～-0.045 |
|
|
Application |
||||||||
|
Carbon Steel |
Pre-harden steel |
High-hardened |
Stainless Steel |
Copper Alloy |
Aluminum Alloy |
|||
|
45HRC |
50HRC |
55HRC |
60HRC |
65HRC |
||||
|
|
|
|
|
|
|
|
|
○ |
Recommended Parameters
|
Material |
Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS... |
Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80 |
Hard Steel, SKD11 |
|||
|
Hardness |
HRC30 |
HRC50 |
HRC60 |
|||
|
Diameter |
Cutting speed(VC) (mm-1) |
Feed(F) (mm-min) |
Cutting speed(VC) (mm-1) |
Feed(F) (mm-min) |
Cutting speed(VC) (mm-1) |
Feed(F) (mm-min) |
|
1mm |
22000 |
400 |
18000 |
200 |
9000 |
140 |
|
1.5mm |
12000 |
500 |
11000 |
280 |
5200 |
150 |
|
2mm |
10000 |
550 |
10000 |
280 |
4600 |
170 |
|
3mm |
9000 |
600 |
5500 |
310 |
3500 |
220 |
|
4mm |
6000 |
750 |
5000 |
400 |
2200 |
220 |
|
5mm |
4800 |
800 |
4000 |
400 |
1700 |
240 |
|
6mm |
4500 |
820 |
3800 |
420 |
1600 |
300 |
|
8mm |
3500 |
820 |
2800 |
420 |
1000 |
300 |
|
10mm |
3000 |
820 |
1800 |
420 |
900 |
300 |
|
12mm |
2000 |
820 |
1600 |
350 |
800 |
300 |
|
16mm |
1500 |
650 |
1000 |
300 |
500 |
150 |
|
20mm |
1200 |
650 |
900 |
300 |
400 |
150 |
 |
 |
Raw Material List
|
Grade |
ISO Code |
Chemical Compositions(%) |
Grain Size(um) |
Physial Mechanical Properites(≥) |
Coating |
|||
|
Wc |
Co |
Density(g/cm3) |
Hardness (HRA) |
T.R.S(N/mm2) |
||||
|
YG10X(50HRC) |
K30-K40 |
89 |
10 |
0.8 |
14.43 |
91.5 |
2500 |
TISIN |
|
UF12U(55HRC) |
K40 |
87 |
12 |
0.6 |
14.15 |
92.3 |
3900 |
TISIN |
|
AF501(60HRC) |
K05-K10 |
89 |
10 |
0.4 |
14.1 |
92.8 |
3600 |
NANO BLACK |
|
AF308(65HRC) |
K05-K10 |
91 |
8 |
0.3 |
14 |
93.8 |
3800 |
NANO (BLUE) |
Detailed Photos
| 2 Flutes DLC milling drills | 2 Flutes DLC Cemented Carbide drills | 2 Flutes DLC Solid Carbide drills |
 |
 |
 |
Our Advantages
Packaging
FAQ
1.Are you manufacturer or trading company ?
We are Professional manufacturer with own export&import license. More than 10 year exporting experience.
2.What cnc machines do you use?
More than 10 pcs ANCA ,Walter CNC grind machines ,and professional staff to make sure the good quality , with short delivery time.
3.Can you send products to our Forwarder in China?
Yes,with our pleasure to send goods to your China forwarder.
