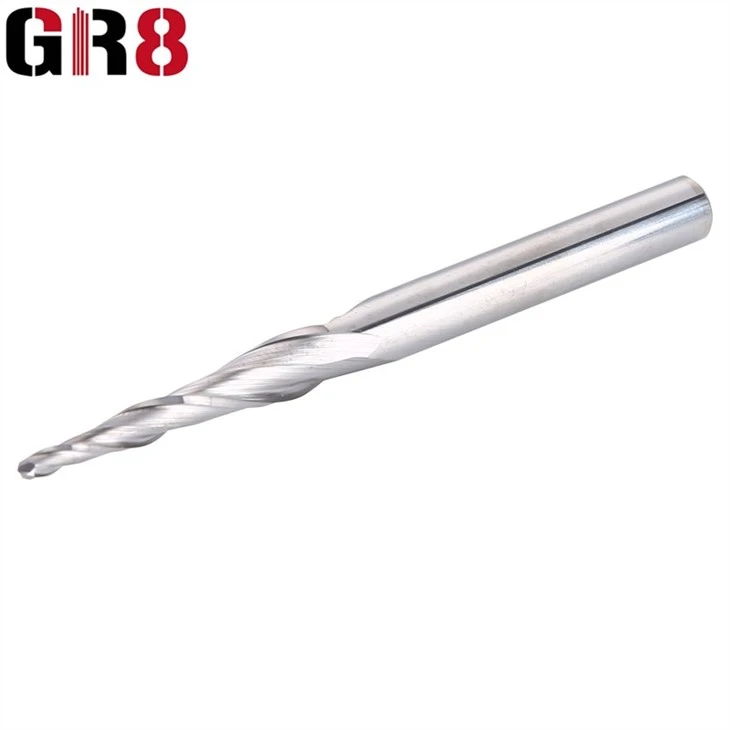

A versatile cutting tool that is ideal for use in mechanical equipment and workshop manufacturing, this 2F taper ball nose milling cutter is a top-of-the-line option for achieving precise cuts in a wide range of materials. Made with high-quality carbide material, it is built to last and is crafted to provide consistent results over time. Its tapered profile design offers maximum precision and accuracy when cutting, while the ball-nose design allows it to penetrate deeply into materials, creating complex shapes and contours with ease.
One of the key features of this tool is its unique structure, which is designed without a coating. This design helps to reduce the friction force between the tool and the surface of the workpiece, thereby minimizing thermal deformation and improving machining accuracy and quality. If you are looking for a milling cutter that can improve efficiency and precision, look no further than this product. Contact us today to learn more about how this tool can enhance your manufacturing operations.
Features:
When it comes to solid carbide ball end milling cutters, you can expect unmatched performance. These cutters are crafted from a single piece of high-hardness, high-strength cemented carbide material. Through specialized processing techniques, the blade achieves exceptional precision and hardness, ensuring optimal efficiency during processing. Moreover, this carefully crafted construction significantly extends the cutter's lifespan, providing you with long-lasting durability.
A knife with a non-coating design can significantly reduce the chances of the knife body and blade melting, and it can also help to prevent oxidation and wear on the surface of the tool. This design ultimately enhances the tool's level of wear resistance and can lead to a longer lifespan overall.
The inclusion of cone and ball design in machining processes has proven to be a game-changer. With their ability to swiftly locate and cut various workpiece surfaces, they have significantly enhanced both the accuracy and efficiency of machining operations. This innovative design has revolutionized the way workpieces are handled and has greatly contributed to improving overall productivity in the manufacturing industry.
4. High processing efficiency: This 2F taper ball nose milling cutter without coatingHigh hardness and strength enable the ability to swiftly slice through diverse materials, significantly enhancing processing efficiency.
Spotlight Exhibits
Factory
Product Description
A solid carbide taper ball nose end mill for wood processing with a hardness of 60HRC is now available. It's designed to provide a precise and efficient cut when working with wood materials. This mill is crafted from high-quality materials to ensure durability and longevity. It'll make your wood processing more convenient and efficient, saving you both time and effort. Give it a try and see the difference it can make in your woodworking project!
|
SPECIFICATION |
R |
L1 |
D |
L |
|
R0.25*15*D4*50L |
0.25mm |
15mm |
4mm |
50mm |
|
R0.5*15*D4*50L |
0.5mm |
15mm |
4mm |
50mm |
|
R0.75*15*D4*50L |
0.75mm |
15mm |
4mm |
50mm |
|
R0.25*20*D6*50L |
0.25mm |
20mm |
6mm |
50mm |
|
R0.5*20*D6*50L |
0.5mm |
20mm |
6mm |
50mm |
|
R0.75*20*D6*50L |
0.75mm |
20mm |
6mm |
50mm |
|
R1*20*D6*50L |
1mm |
20mm |
6mm |
50mm |
|
R0.25*30.5*D6*75L |
0.25mm |
30.5mm |
6mm |
75mm |
|
R0.5*30.5*D6*75L |
0.5mm |
30.5mm |
6mm |
75mm |
|
R0.75*30.5*D6*75L |
0.75mm |
30.5mm |
6mm |
75mm |
|
R1*30.5*D6*75L |
1mm |
30.5mm |
6mm |
75mm |
|
R1*50*D8*100L |
1mm |
50mm |
8mm |
100mm |
|
R1.5*50*D8*100L |
1.5mm |
50mm |
8mm |
100mm |
|
R1*60*D8*120L |
1mm |
60mm |
8mm |
120 |
|
Tolerances |
||
|
Flute Diameter |
Flute Diameter Tolerance |
Shank Diameter Tolerance |
|
Φ1.0-Φ2.9 |
0~-0.02 |
H6 |
|
Φ3-Φ6 |
-0.01~-0.03 |
|
|
Φ6-Φ10 |
-0.01~-0.035 |
|
|
Φ10.0-Φ18.0 |
-0.01~-0.04 |
|
|
Φ18.0-Φ20.0 |
-0.015~-0.045 |
|
|
Application |
||||||||
|
Multilayer Board |
MDF |
Hard Wood |
EVE Sponge |
Particleboard |
Aluminum Alloy |
|||
|
50HRC |
55HRC |
60HRC |
65HRC |
|||||
|
√ |
√ |
√ |
√ |
|
|
|
√ |
|
Raw Material List
|
Grade |
ISO Code |
Chemical Compositions(%) |
Grain Size(um) |
Physial Mechanical Properites(≥) |
Coating |
|||
|
Wc |
Co |
Density(g/cm3) |
Hardness (HRA) |
T.R.S(N/mm2) |
||||
|
YG10X(50HRC) |
K30-K40 |
89 |
10 |
0.8 |
14.43 |
91.5 |
2500 |
TISIN |
|
UF12U(55HRC) |
K40 |
87 |
12 |
0.6 |
14.15 |
92.3 |
3900 |
TISIN |
|
AF501(60HRC) |
K05-K10 |
89 |
10 |
0.4 |
14.1 |
92.8 |
3600 |
NANO BLACK |
|
AF308(65HRC) |
K05-K10 |
91 |
8 |
0.3 |
14 |
93.8 |
3800 |
NANO (BLUE) |
Detailed Photos
| 2 Flutes Taper Ball nose Carbide cutter | 2 Flutes Taper Ball nose endmills | 2 Flutes Solid Carbide Taper Ball nose End Mill |
 |
 |
 |
Our Advantages
1. Several years' professional producting and exporting experience
2. Advanced RD department meet your special demands
3. High precision CNC machines,high standard and strict inspection
4. Custom demand are welcomed ,OEM and ODM Service
5. All payment terms supported
6. Fast delivery time and Convenient Transportations
7. More than 2000 products are available
8. For your suggestions or complaints,We will handle them Soonest.
