This 2F taper ball nose endmill with coating is versatile and can be used in various applications such as milling and drilling. It is suitable for a wide range of materials including hardened steel, stainless steel, aluminum, copper, and more. Whether it's in the aerospace industry, automotive industry, or any other manufacturing sector, this end mill is designed to deliver the precision and efficiency needed for the job. It is crafted using high-quality ultra-fine grain cemented carbide material, ensuring exceptional cutting performance and wear resistance. The conical spherical shape of the tool head enables smoother, more accurate cuts while minimizing vibrations and tool jamming, resulting in improved processing efficiency and superior workpiece surface quality. Moreover, this design allows for easy adaptation to various hole shapes, including inner wall chamfering and curves, enhancing processing flexibility and versatility. With a top-notch coating process, this end mill offers enhanced heat resistance, oxidation resistance, corrosion resistance, and overall durability, ensuring a longer service life.
Product advantages
By incorporating the tapered ball head design, the processing efficiency can be significantly enhanced. This innovative design ensures a more precise and stable cutting effect, leading to a substantial reduction in processing costs and time savings.
This end mill, crafted from a sturdy alloy material, boasts remarkable durability and precise cutting capabilities. Its exceptional wear resistance and ability to maintain its shape and integrity even under high-speed machining conditions make it an ideal choice. Using this outstanding tool, you can confidently tackle challenging tasks without worrying about wear and tear or the risk of deformation or cracking.
3. Wide applicability: This 2F taper ball nose endmill with coatingThis cutting machine is versatile and can handle a wide range of materials and shapes, including aluminum alloy and stainless steel. Its applications are wide-ranging and cover various industries such as automotive, electronics, and mechanical equipment. It is particularly useful in cutting precise shapes and sizes for components in these sectors.
1. With a focus on durability, this end mill boasts exceptional strength. It has been engineered using advanced coating technology, resulting in enhanced heat resistance, oxidation resistance, and corrosion resistance. These improvements in properties significantly extend the tool's service life by preventing wear and tear. As a result, the frequency of replacements is minimized, leading to reduced processing costs.
Spotlight Exhibits
Factory
Product Description
This is a top-quality solid carbide taper ball nose end mill that is designed for hard steel materials with a hardness range of 55 to 60 HRC. It is expertly crafted to ensure precision and accuracy in all your machining tasks. The end mill is sturdy and durable, ensuring that it can withstand the rigors of daily use without losing its sharpness or efficiency.
Whether you are working on simple or complex projects that require you to bore or contour, this tapered ball nose end mill is the perfect tool for the job. Its unique design allows it to cut effortlessly through hard steels with minimal chatter, ensuring that you get smooth and precise cuts every time.
In summary, this carbide taper ball nose end mill is a must-have for professionals and hobbyists who work with hard steel materials. With its high-quality construction and cutting-edge design, it provides exceptional performance, reliability, and longevity.
|
SPECIFICATION |
R |
L1 |
D |
L |
|
R0.25*15*D4*50L |
0.25mm |
15mm |
4mm |
50mm |
|
R0.5*15*D4*50L |
0.5mm |
15mm |
4mm |
50mm |
|
R0.75*15*D4*50L |
0.75mm |
15mm |
4mm |
50mm |
|
R0.25*20*D6*50L |
0.25mm |
20mm |
6mm |
50mm |
|
R0.5*20*D6*50L |
0.5mm |
20mm |
6mm |
50mm |
|
R0.75*20*D6*50L |
0.75mm |
20mm |
6mm |
50mm |
|
R1*20*D6*50L |
1mm |
20mm |
6mm |
50mm |
|
R0.25*30.5*D6*75L |
0.25mm |
30.5mm |
6mm |
75mm |
|
R0.5*30.5*D6*75L |
0.5mm |
30.5mm |
6mm |
75mm |
|
R0.75*30.5*D6*75L |
0.75mm |
30.5mm |
6mm |
75mm |
|
R1*30.5*D6*75L |
1mm |
30.5mm |
6mm |
75mm |
|
R1*50*D8*100L |
1mm |
50mm |
8mm |
100mm |
|
R1.5*50*D8*100L |
1.5mm |
50mm |
8mm |
100mm |
|
R1*60*D8*120L |
1mm |
60mm |
8mm |
120 |
|
Tolerances |
||
|
Flute Diameter |
Flute Diameter Tolerance |
Shank Diameter Tolerance |
|
Φ1.0-Φ2.9 |
0~-0.02 |
H6 |
|
Φ3-Φ6 |
-0.01~-0.03 |
|
|
Φ6-Φ10 |
-0.01~-0.035 |
|
|
Φ10.0-Φ18.0 |
-0.01~-0.04 |
|
|
Φ18.0-Φ20.0 |
-0.015~-0.045 |
|
|
Application |
||||||||
|
Multilayer Board |
MDF |
Hard Wood |
EVE Sponge |
Particleboard |
Aluminum Alloy |
|||
|
50HRC |
55HRC |
60HRC |
65HRC |
|||||
|
√ |
√ |
√ |
√ |
|
|
|
√ |
|
Raw Material List
|
Grade |
ISO Code |
Chemical Compositions(%) |
Grain Size(um) |
Physial Mechanical Properites(≥) |
Coating |
|||
|
Wc |
Co |
Density(g/cm3) |
Hardness (HRA) |
T.R.S(N/mm2) |
||||
|
YG10X(50HRC) |
K30-K40 |
89 |
10 |
0.8 |
14.43 |
91.5 |
2500 |
TISIN |
|
UF12U(55HRC) |
K40 |
87 |
12 |
0.6 |
14.15 |
92.3 |
3900 |
TISIN |
|
AF501(60HRC) |
K05-K10 |
89 |
10 |
0.4 |
14.1 |
92.8 |
3600 |
NANO BLACK |
|
AF308(65HRC) |
K05-K10 |
91 |
8 |
0.3 |
14 |
93.8 |
3800 |
NANO (BLUE) |
Detailed Photos

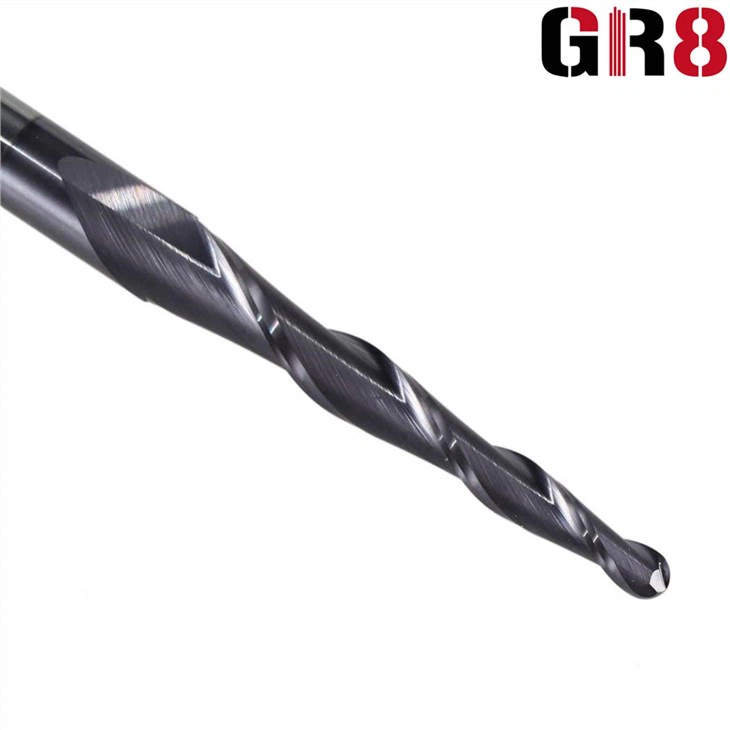

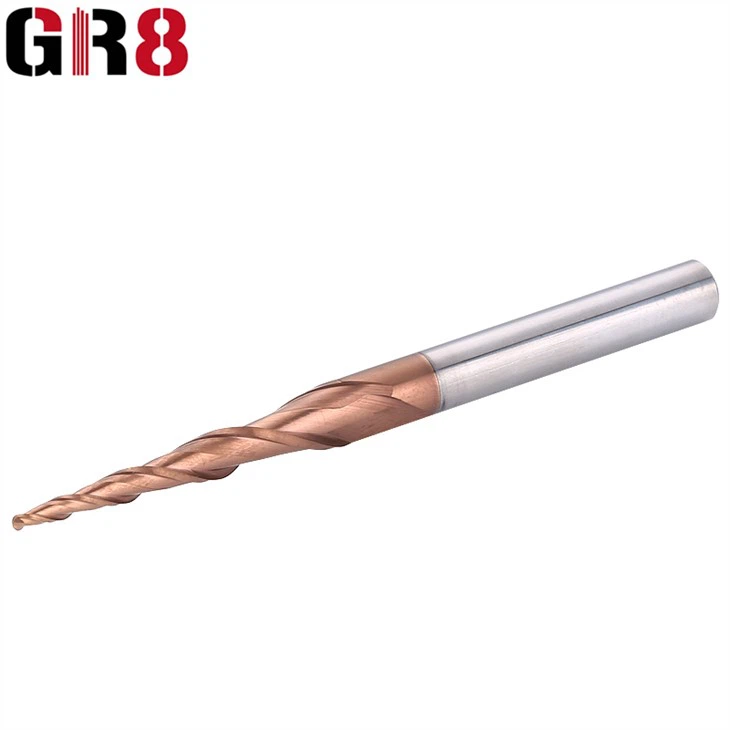

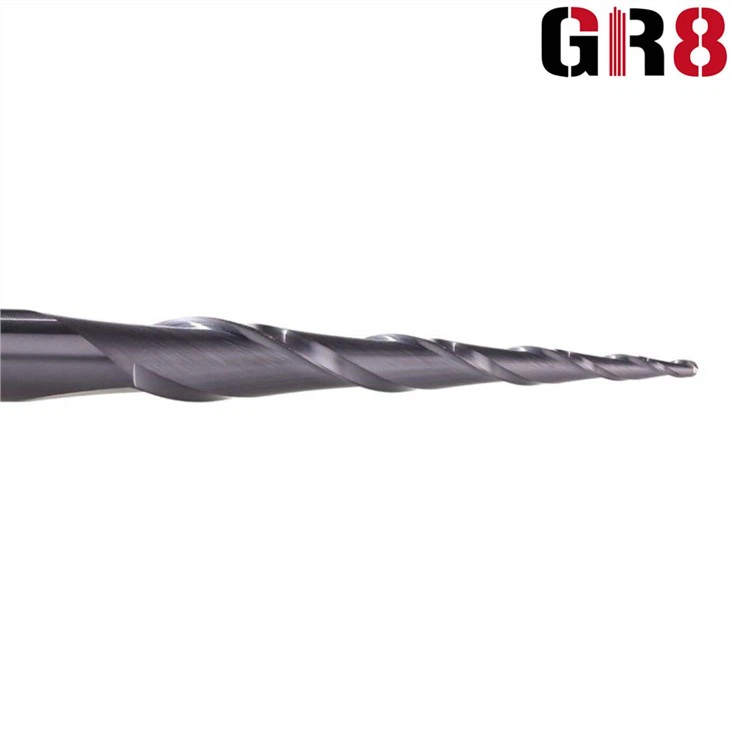

| 2 Flutes Taper Ball nose cutter | 2 Flutes Cemented Carbide Taper Ball nose End Mill | 2 Flutes Taper Ball nose Carbide Cutting tools |
 |
 |
 |
